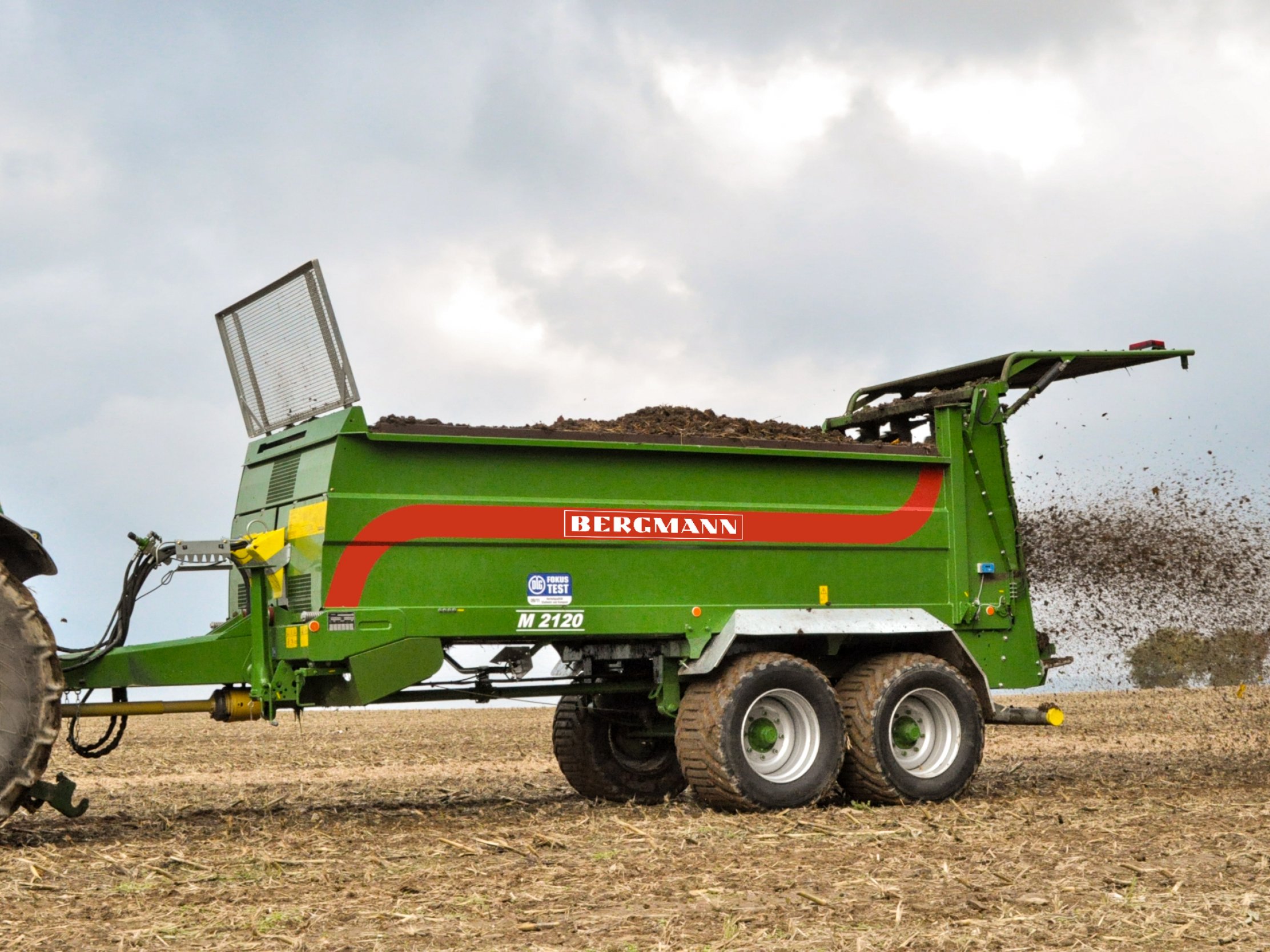

• Chassis:
• High loads and long service life through rugged chassis and low dead weight of spreader
• Quick and easy cleaning through open subframe
• Easy, unloading without clogging, resulting in a good spread quality through conical all-steel bin
• Bogie:
• Tandem pendulum suspension unit with four maintenance-free parabolic springs
• No material deposits on the axles through standard axle cover
• Brake system:
• Safe driving, operational safety and high ease of use through standard dual-circuit air brake system
• PTO shaft:
• PTO shaft with cam clutch as standard equipment for overload protection for tractor and spreader
• High ease of use
• Steel side walls:
• Side walls are fully welded to the floor for exceptional stability
• Scraper floor with low power demand and no material accumulation in front of the spreader unit through conical body design
• Drive train:
• Minimum wear through 1-piece shaft without spring pins and holes
• Scraper floor:
• Long durability and high reserves through four strong round-link steel chains with specially hardened ends
• No chain skipping due to large engagement depth of chain links in the chain sprockets (approx. 95 %)
• No drive pin skew through paired chain elongation
• Safe material transport through hot-rolled U-profile flights with good traction
• Bolted flights (U-profile) for easy replacement if worn or damaged through foreign objects – no cutting and welding required
• Optimum flow control and quick emptying, easy reversing and even material feed to the spreader unit through hydraulic scraper floor drive with spur gearbox for excellent longitudinal and lateral distribution
• Low-maintenance through automatic, chain tensioners visible from tractor
• Convenient chain tension readjustment from the front of the spreader
• Easy cleaning and maintenance of the scraper floor through large maintenance hood on the front wall
• Convenient observation of the scraper floor through viewing window 4-beater spreader unit SX:
• Universal spreader unit with four vertical beaters for all types of manure
• Very good lateral and longitudinal distribution through screwed, highly wear-resistant double tines in a V-pattern for perfect growth
• High throughput rates at low power requirement
• Flange bearings can be relubricated for long service life
• Quiet, even operation through direct drive via five gearboxes
• Low maintenance and wear through rugged, high-load drive
• Spreader hood:
• Safety, cleanliness and high ease of use through hydraulic folding
• A wide range of optional extras allows optimum adaptation to user requirements
• Easy setting of the spreader by using the BERGMANN Setting app for spreader setting charts

• Chassis:
• Rugged, self-supporting and conical all-steel bin
• Chassis (screwable)
• Mechanical spring-loaded drawbar for high drawbar
• Swivelling jack stand
• Axle cover
• Bogie:
• 2 rigid braking axles
• Tandem chassis with parabolic suspension and swing compensation
• Axle track width 1,900 mm
• 8-hole wheel connection
• Brake:
• Dual-circuit air brake system with ALB regulator
• Body:
• Load volume 9.1 m³
• Bridge dimensions: 4,900 x 1,800 mm
• Rigid steel side wall, 1,070 mm high
• Stable scraper guards of recycled plastic
• Steel floor, welded to side walls
• Large cargo space viewing window
• Protective screen at front
• Spreader unit:
• Vertical 4-beater spreader unit (SX)
• Passage height 1,400 mm
• Hydraulically foldable spreader hood
• Scraper floor:
• Hydraulically driven on one side with return line (reversible)
• Automatic chain tensioner at the front
• 4 round-link steel chains (14 x 50 mm each, 25 t breaking load per chain)
• Screwed flights
• Diameter of feed shaft 50 mm
• Drive:
• Walterscheid PTO shaft with cam clutch
• One-piece drive shaft
• Lighting:
• Conforming to EU directives
• Protected on spreader hood
• Protective equipment according to German employers’ liability insurance association
• EU type approval (CoC)

* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
