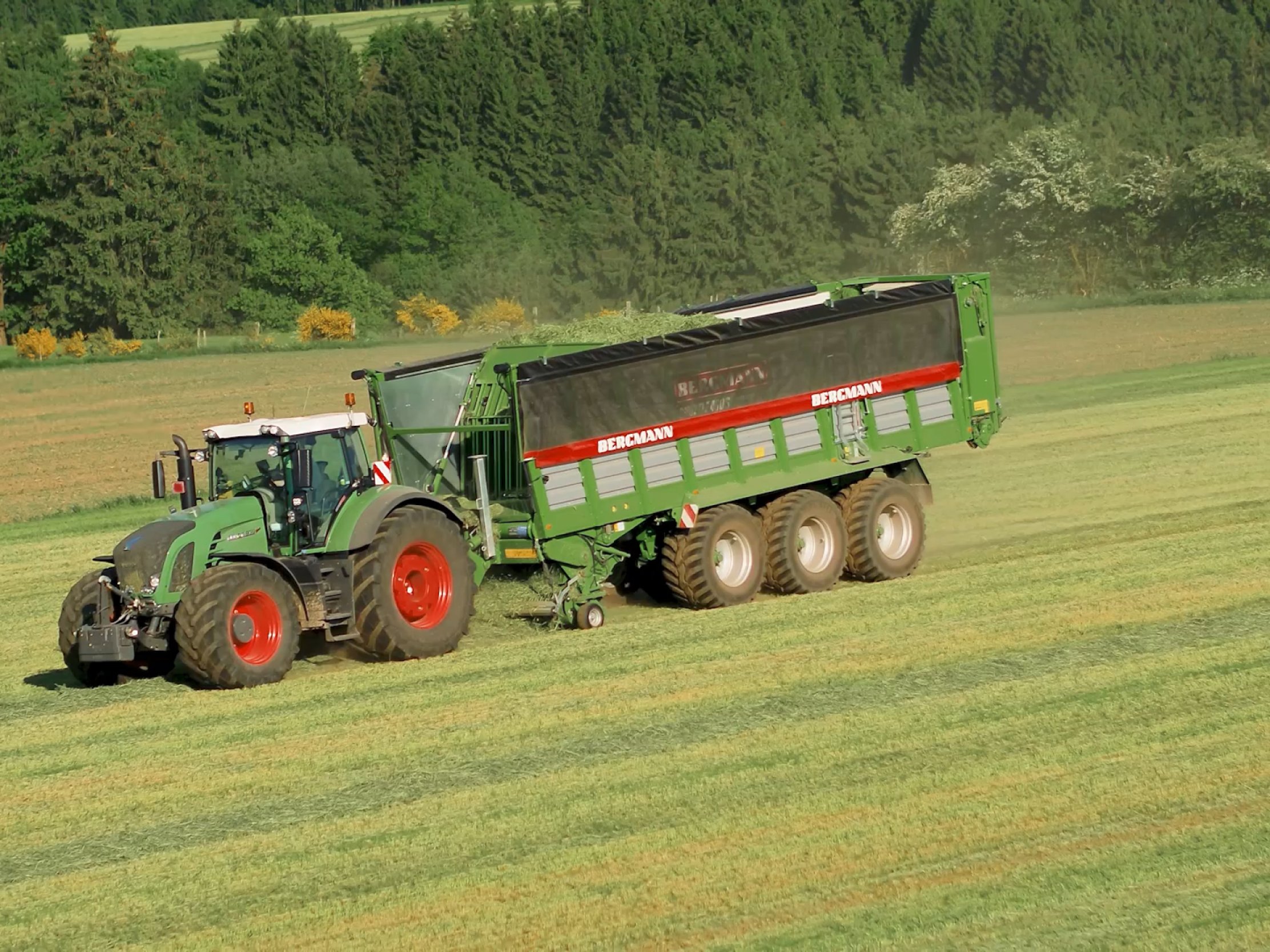

SHUTTLE 490 S
Tridem chassis, 47.5 to 49.5 m³ DIN load volume, 3 dosing rollers, from 180 hp
The SHUTTLE 490 S is a loader wagon with a load volume from 47.5 to 49.5 m³ and is designed for combined use for green fodder harvest and as forage transport trailer. The 2,270 mm wide pick-up with double swath roller facilitates a clean crop intake. BERGMANN is the only manufacturer to offer both a steered "ActiveLoad" and a non-steered "EasyLoad" pick-up for loader wagons. This allows users to choose the pick-up type that is best suited to their particular requirements and operating conditions. The rotor with a width of 1,840 mm and a diameter of 850 mm is designed for a high throughput with perfect cut quality. With the short cutting unit with 53 knives, the theoretical cut length is 34 mm. The scraper floor is made of rugged steel (standard equipment) and lowered by 275 mm at the front for a better material flow and lower power demand. The SHUTTLE has a movable front wall to increase the load volume and a forage loading flap for use as forage transport trailer as standard equipment. The standard tridem chassis with 300 mm hydraulic axle compensation ensures superior driving characteristics, excellent stability and off-road capability as well as safety both at standstill and while driving. To ensure low ground disturbance on the field, various tyres in sizes up to 800/45 R30.5 are available. A follow-up steering to minimize disturbance of the sensitive sward is standard. Superior user friendliness and high ease of use with ISOBUS operation as standard. The ISOBUS standard allows the use of ISOBUS-compatible operator and tractor terminals.
- Chassis:
- High loads and long service life through torsion-resistant chassis and low dead loader wagon weight
- Easy coupling through hydraulically operated high-lift drawbar for low drawbar
- Narrow drawbar for good manoeuvrability
- Stable when parked through manual folding jack stand
- Bogie:
- High swing angles for good adaptability to terrain, easy driving over silos and easy towing with and handling on the road through tridem chassis with trailing arm and hydraulic axle compensation of 300 mm
- Clean mudguards and therefore no soiling of road since mudguards are tapered to the outside
- Manoeuvrability, transport with low ground disturbance also at high payloads and low tyre wear through standard follow-up steering
- High stability in the field and on the silo through 2,100 mm axle track width
- Brake system:
- Safe driving, operational safety and high ease of use through standard dual-circuit air brake system
- PTO shaft:
- Overload protection for tractor and loader wagon through standard wide-angle PTO shaft (on one side) with cam clutch
- Intake:
- Clean fodder collection without loss, also of short fodder, through steered pick-up with 2,270 mm intake width
- Suitable for wide swaths
- Double swath roller for ideal material flow even at high driving speeds
- Infinite speed adjustment of pick-up via hydraulic drive
- Rotor:
- Optimum cut and load rate through 1-rotor system with wide cutting rotor (1,840 mm, 850 mm diameter)
- Ideal material flow through very small taper from the pick-up into the cutting groove
- Maximum throughput possible at large width
- Optimum loading of cargo space also at the sides
- Maintenance-free main drive, transmission via powerful planetary gearbox
- Low wear through Hardox tine coating
- Cutting unit:
- Short cut fodder with a theoretical cut length of 34 mm for good compaction in the silo through 53 knives on one level
- Easy and exact cutting for high fodder quality
- Knife shape and position of rotor tines ensure a pulling cut
- Optimum protection, reliable and smooth retraction of knives into the cutting groove through separate foreign-object protection for each knife
- Tool-less and therefore quick and easy removal of individual knives for maintenance or knife change
- Body:
- Easy change of loading method from loader wagon to forage transport trailer through stable body without diagonal brackets and ropes
- No accumulation of crop and reduction of friction forces thanks to a rigid contoured panel body with hydraulically movable hinged front wall and smooth insides and side walls in the front section
- High transport capacity despite compact vehicle size and quick emptying through hydraulically operated, hinged front wall
- Good visibility into body during filling and emptying through large viewing window in the front wall
- Easy harvesting through standard forage loading flap in the front wall
- Reliable mechanical locking of hydraulically operated tailgate also on poor roads
- Optional auto-loading with two measuring points, adjustable from tractor for rapid adaptation to changing operating conditions
- Dosing unit:
- Even fodder distribution on the silo through three dosing rollers for optimum fodder compaction and superior fodder quality
- Scraper floor:
- Loading with low force and good product distribution right from the start of loading through short conveying channel and 275 mm scraper floor inclination towards the front
- Long durability and high reserves through four strong round-link steel chains with specially hardened ends
- No chain skipping due to large engagement depth of chain links in the chain sprockets (approx. 95 %)
- No flight skew through paired link elongation
- Reliable crop transport through flights of rectangular tubing
- Easy checking of scraper floor and chain tension through automatic chain tensioner
- Readjusting of chain tension at front under the loader wagon in the area of the cutting unit
- Quick emptying through scraper floor that is hydraulically driven on both sides with feed and return line and high-gear 2-speed control
- Even crop feed ensures a good distribution in the silo
- Operation:
- Easy and safe operation allows high daily output
- High ease of use through ISOBUS operation as standard
- High-lift drawbar and knife bar can additionally be operated from the left side (in driving direction) of the loader wagon for easy coupling or maintenance work
- Chassis:
- Hydraulically adjustable high-lift drawbar for low drawbar
- 2 double-acting cylinders
- Manual folding jack stand
- Bogie:
- 2 braking axles
- Tridem chassis with trailing arms and hydraulic axle compensation
- Maintenance-free cylinder bearings
- Axle track width 2,100 mm
- 10-hole wheel connection
- 2 hydraulically lockable follow-up steering axles (1st and 3rd axle)
- Angled mudguards
- Brake:
- Dual-circuit air brake system with ALB regulator, spring actuated
- Intake:
- Steered pick-up
- Intake width 2,270 mm
- Hydraulic drive
- 6 rows of tines with centre support
- 55 mm tine spacing
- Guide comb with 2 swath rollers
- Steered guide wheels with pneumatic tyres
- Rotor:
- 1 spiral-feed rotor with 8 rows of tines
- 850 mm diameter
- 1,840 mm width
- Diameter of rotor drive journal 90 mm
- Hardox tine coating
- Cutting unit:
- 53 knives on one level
- Theoretical cut length 34 mm
- Single knife protection mechanism
- Hydraulic knife control
- Tool-less knife change
- Body:
- Rigid body, galvanized and plastic-coated or painted
- Hydraulically operated, hinged front wall including forage loading flap
- Hydraulically operated tailgate with position indicator
- Steel floor
- Cargo space entry on left side in driving direction
- Dosing unit:
- 3 dosing rollers
- Scraper floor switch-off through lower dosing roller
- Driven via angle gearbox
- Protection through cam clutch
- Scraper floor:
- Lowered by 275 mm towards the front
- Hydraulically driven on both sides via 2-speed spur gearbox
- Feed and return line
- 4 round-link steel chains (14 x 50 mm each, 25 t breaking load per chain)
- Diameter of feed shaft 50 mm
- Drive:
- Walterscheid wide-angle PTO shaft (one side) with cam clutch (2,500 Nm)
- PTO speed 1,000 rpm
- Rotor driven via planetary gearbox
- Operation:
- ISOBUS operation
- Lighting according to EU directives
- Protective equipment according to German employers’ liability insurance association
- EU type approval (CoC)
Dimensions | |
---|---|
Length | 11.900 mm |
Width | 2.550 mm |
Height | 4.000 mm |
Weight | |
Gross weight | 33.000 - 34.000 kg |
Net weight with basic equipment | 13.100 kg |
Coupling | |
Low drawbar | x |
Permissible tongue load of low drawbar | 3.000 - 4.000 kg |
Drawbar eye (hitch ring) Ø 50 mm | x |
Drawbar eye K80 | x |
Drive | |
PTO shaft input speed | 1.000 U/min |
Intake | |
Intake width of pick-up | 2.270 mm |
Number of swath rollers | 2 |
Number of tine rows | 6 |
Number of double tines per row | 18 |
Tine spacing | 55 mm |
Tine diameter | 5 mm |
Steered pick-up | x |
Hydraulic pick-up drive | x |
Ground clearance, pick-up | ~ 400 mm |
Ground clearance of pick-up with extended high-lift drawbar | ~ 700 mm |
Rotor | |
Rotor diameter | 850 mm |
Rotor width | 1.840 mm |
Number of tine rows per rotor | 8 |
Cutting unit | |
Number of knives | 53 |
Theoretical cut length | 34 mm |
Body/cargo space | |
Load | 19.900 - 20.900 kg |
Load volume according to DIN 11741 | 49,5 m³ |
Load volume at medium compaction | 89,1 m³ |
Swivelling front wall | x |
Forage loading flap | x |
Cargo space entry, left | x |
Number of dosing rollers | 3 |
Scraper floor | |
Number of scraper floor chains | 4 |
Dimensions of links | 14 x 50 mm |
Max. breaking load per scraper floor chain (total) | 25 (100) t |
Scraper floor lowered | 275 mm |
Hydraulic scraper floor drive | x |
Scraper floor drive on both sides | x |
Chassis | |
Tridem chassis | 3 |
Hydraulic axle compensation | x |
Number of follow-up steering axles | 2 |
Axle track width | 2.100 mm |
Air brake | x |
Transport speed | 40 km/h |
Tyres | |
26.5" wheel rim | x |
30.5" wheel rim | x |
Tractor requirements | |
Engine rating (min. - max.) | 132 - 257/180 - 350 kW/PS |
* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
