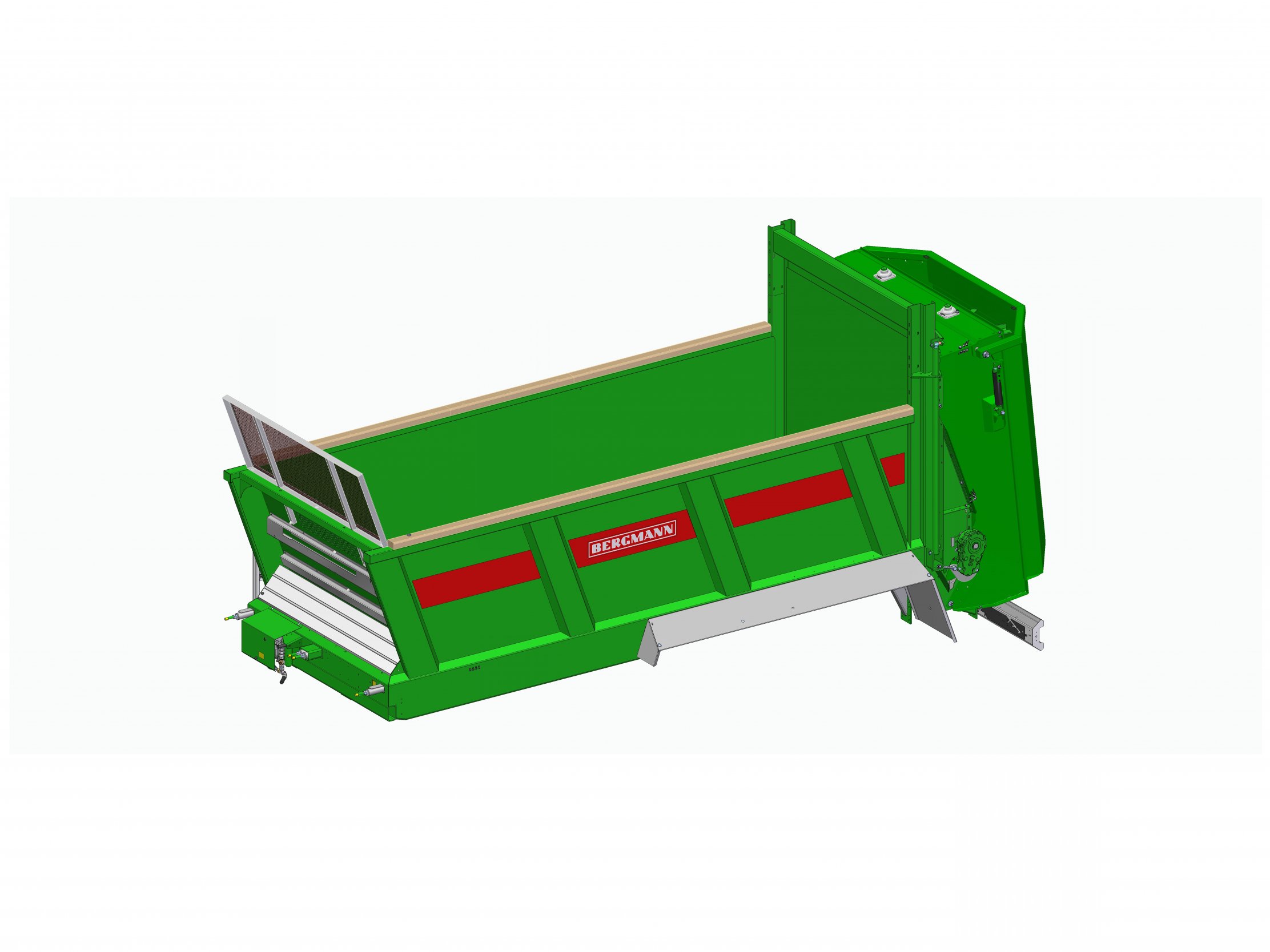

The M A 16 spreader body matches the body size of the M 5210. It can be combined with the BERGMANN VARIO 400 chassis. It is easy to mount using four proven Twistlock fasteners, like the ones used for truck swap bodies and in shipping. The M A 16 is equipped with a conical all-steel bin and a rugged, low-maintenance drive. The 2-Spread hybrid spreader unit is fitted with two vertical beaters (ø 1,050 mm) and connected spreader disks (ø 1,050 mm, each with three adjustable spreader blades). It has a passage height of 1,700 mm for exceptionally high throughputs. For optimum shredding and spreading of the material, screwed in spreader blades and beater tines are alternately arranged on the beaters. The 2-Spread spreader unit is the ideal combination of manure and universal spreader unit. In addition to solid manure, it can also be used for spreading lime, compost and other materials with working widths of up to 18 m. The large range of optional extras makes for an ideal adaptation to users’ requirements. The M A 16 is parked on four optional jack stands.
Dimensions |
Body length |
5.900 mm |
Body width |
2.050 mm |
Body height |
1.320 mm |
Weight |
Net weight of body |
4.860 kg |
Net weight of carrier vehicle |
3.540 kg |
Net weight total |
8.400 kg |
Drive |
PTO shaft input speed |
1.000 U/min |
Body/cargo space |
Load volume |
17 m³ |
Load height |
3.065 mm |
Scraper floor |
Number of scraper floor chains |
4 |
Dimensions of links |
14 x 50 mm |
Max. breaking load per scraper floor chain (total) |
25 (100) t |
Thickness of steel floor |
4 mm |
Hydraulic scraper floor drive |
x |
Scraper floor drive on both sides |
x |
Milling unit/spreader unit |
Passage height of dosing wall |
1.700 mm |
Passage height of spreader unit |
1.700 mm |
Number of vertical spreading beaters |
2 |
Vertical beaters |
x |
Diameter of beaters |
1.050 mm |
Number of spreader disks |
2 |
Diameter of spreader disks |
1.050 mm |
Number of spreader blades per spreader disk |
3 |
Chassis |
For VARIO 400 chassis |
x |
Tractor requirements |
Engine rating (min. - max.) |
103 - 184/140 - 250 kW/PS |
* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
