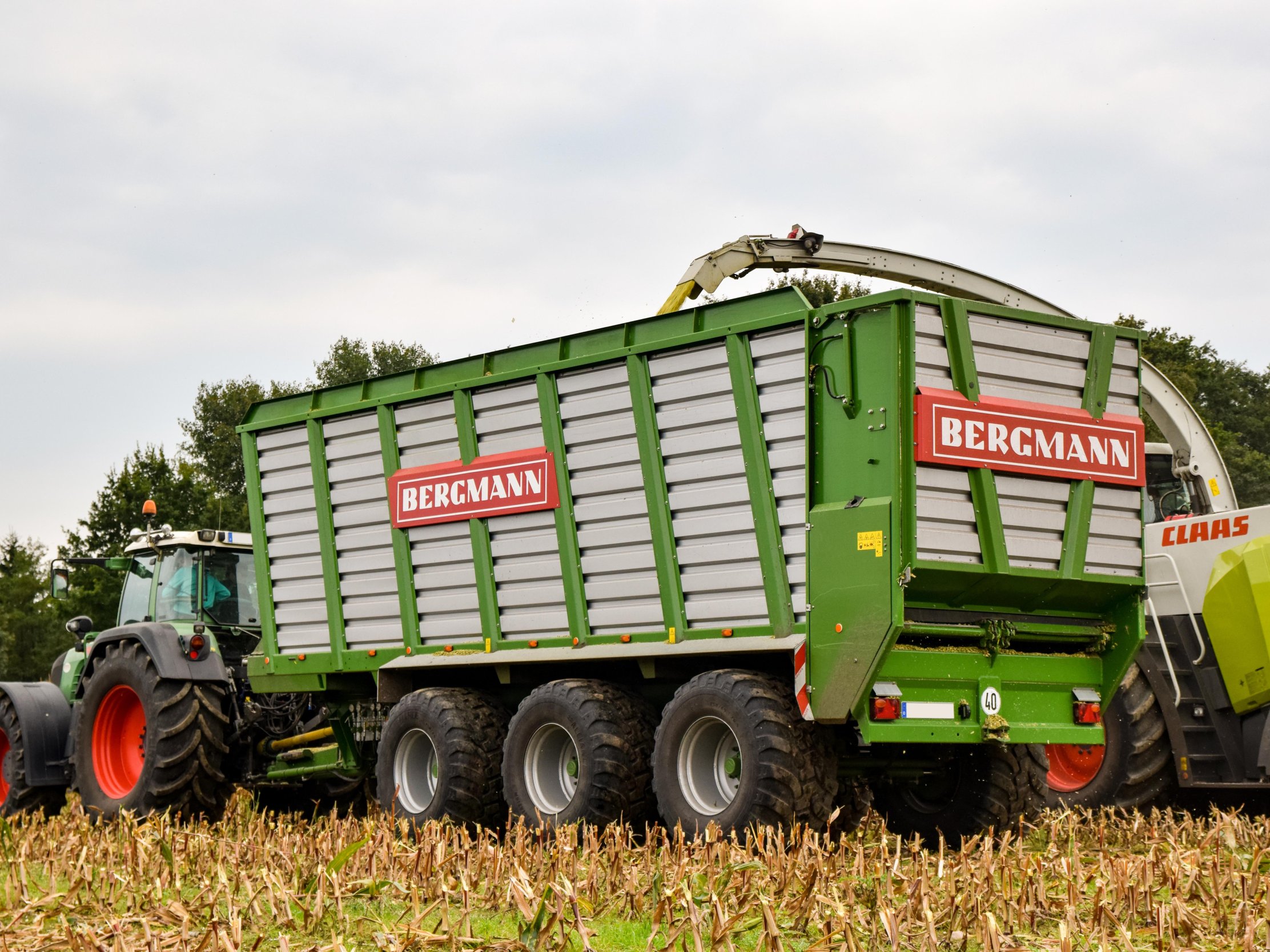

• Body:
• Easy emptying also of damp and heavy forage through conical body
• Good visibility into body during filling and emptying through large viewing window in the front wall
• Inclined front wall to prevent accumulation of forage in the front wall viewing window
• Easy harvesting through 600 mm high forage loading flap in the front wall as standard equipment
• Reliable mechanical locking of hydraulically operated tailgate also on poor roads
• Easy emptying also at high load through high-passage tailgate with large opening angle
• Drive train:
• Minimum wear through 1-piece shaft without spring pins and holes
• Scraper floor:
• Long durability and high reserves through four strong round-link steel chains with specially hardened ends
• No chain skipping due to large engagement depth of chain links in the chain sprockets (approx. 95 %)
• No drive pin skew through paired link elongation
• Reliable crop transport through flights of rectangular tubing
• Easy monitoring of scraper floor and chain tension through automatic chain tensioners that can be seen from the tractor
• Convenient chain tension readjustment from the front of the forage transport trailer
• Quick emptying through scraper floor that is mechanically driven on both sides with split feed shaft
• Even power transmission to the scraper floor through mechanical drive
• Even crop feed ensures a good distribution in the silo
• A wide range of optional extras allows optimum adaptation to user requirements

• Body:
• Body with twist locks
• Conical cargo space
• Bridge dimensions: 8,460 x 2,400 mm, 2 cross-braces
• Body is made of 200 mm U-frame profile
• Height of side wall 2,200 mm
• Contoured panel front wall inclined towards the front with large viewing window
• 600 mm high, hydraulically foldable forage loading flap
• The side walls are made of galvanized and plastic-coated contoured panels
• Hydraulically operated tailgate with mechanical lock
• Steel floor
• Scraper floor:
• Mechanical drive on both sides
• 4 round-link steel chains (14 x 50 mm each, 25 t breaking load per chain)
• Automatic chain tension
• Split feed shaft
• Diameter of feed shaft 60 mm
• Screwed, closed flights
• Unloading speed: approx. 16.3 m/min at 1,000 rpm
• Drive:
• Walterscheid wide-angle PTO shaft (on tractor side) with cam clutch
• One-piece drive shaft
• PTO speed 1,000 rpm
• Hydraulic connection:
• 2x double-acting control unit for hydraulically operated tailgate and forage loading flap
• Lighting according to EU directives
• Protective equipment according to German employers’ liability insurance association

* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
