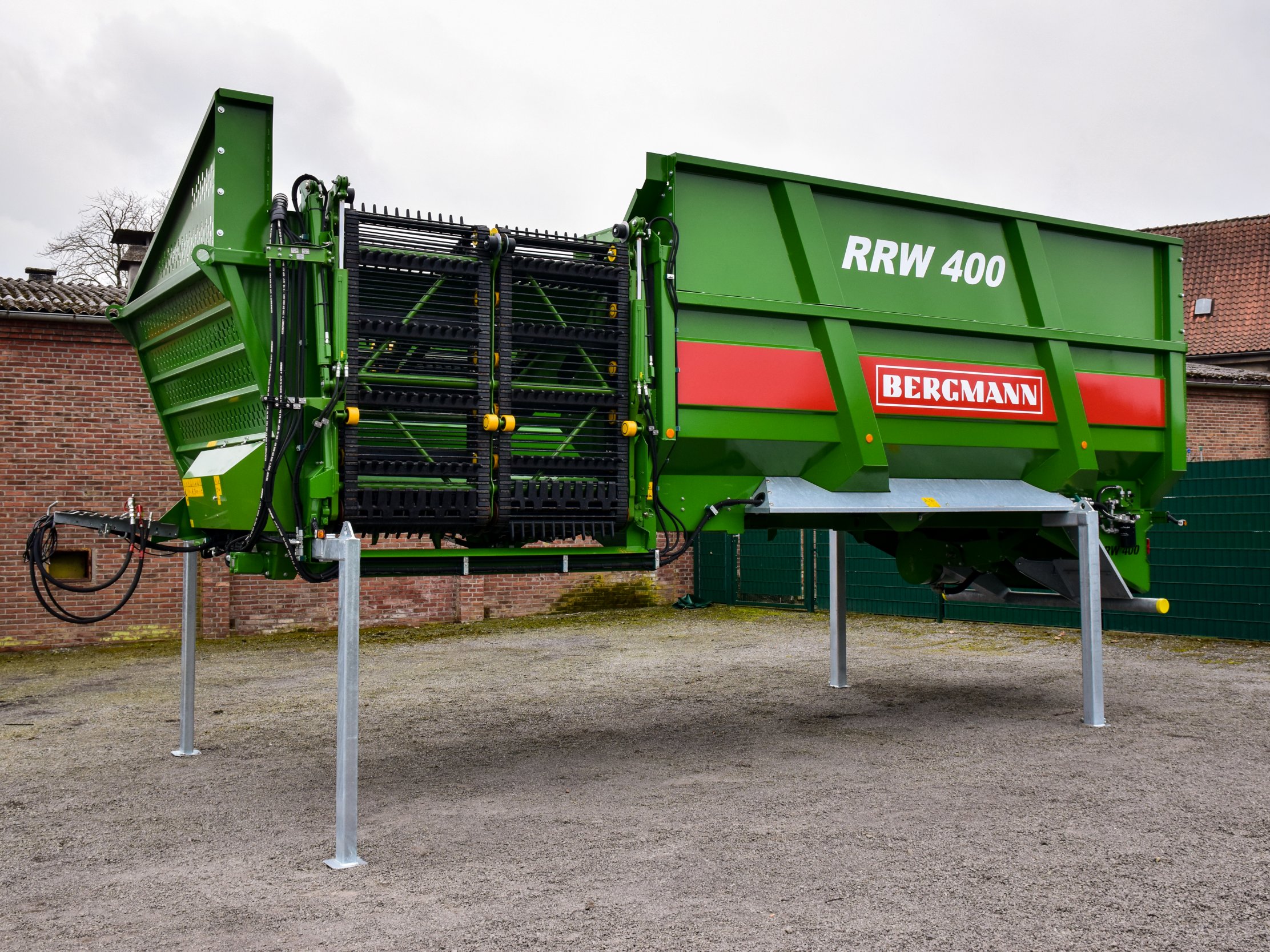

The beet transfer body RRW A 400 corresponds to the size of the body of the RRW A 400 and has a load volume of 39 m³. It can be combined with the BERGMANN VARIO 440 chassis. It is easy to mount using six proven Twistlock fasteners, like the ones used for truck swap bodies and in shipping. The RRW A 400 is designed to provide maximum transfer rates while treating the crop gently. BERGMANN beet transfer trailers are extremely stable due to their full-steel structure and are therefore ideally suited for use under difficult conditions. The two metre wide transfer belt ensures high conveying rates with a short unloading time of about 45 seconds. This allows a maximum unloading rate of up to 2,100 t per hour. The transfer belt with integrated cleaning function, folds into three sections, making it exceptionally adaptable to all conditions up to a transfer height of more than 4 meters. The standard on-board hydraulics are driven via the tractor’s PTO. Operation via PILOTBOX as standard. Operation via ISOBUS is also possible.
| Dimensions |
| Body length |
7800 mm |
| Body width |
2800 mm |
| Body height, left |
2100 mm |
| Body height, right (with rubber lip) |
1200 (1455) mm |
| Weight |
| Net weight of body |
7150 kg |
| Drive |
| On-board hydraulics |
x |
| Pump rating |
160 l |
| Max. pressure |
400 bar |
| Body/cargo space |
| Load |
~ 25000 kg |
| Load volume |
39 m³ |
| Load height, left |
3900 mm |
| Load height, right |
3000 + 255 mm |
| Scraper floor |
| Number of chains, longitudinal scraper floor |
4 |
| Number of chains, cross scraper floor |
4 |
| Hydraulic scraper floor drive |
x |
| Transfer belt |
| Width of transfer belt |
2000 mm |
| Transfer height |
1700 - 4200 mm |
| Transfer rate |
2100 t/h |
| Transfer time |
45 s |
| Chassis |
| For VARIO 440 chassis |
x |
* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
