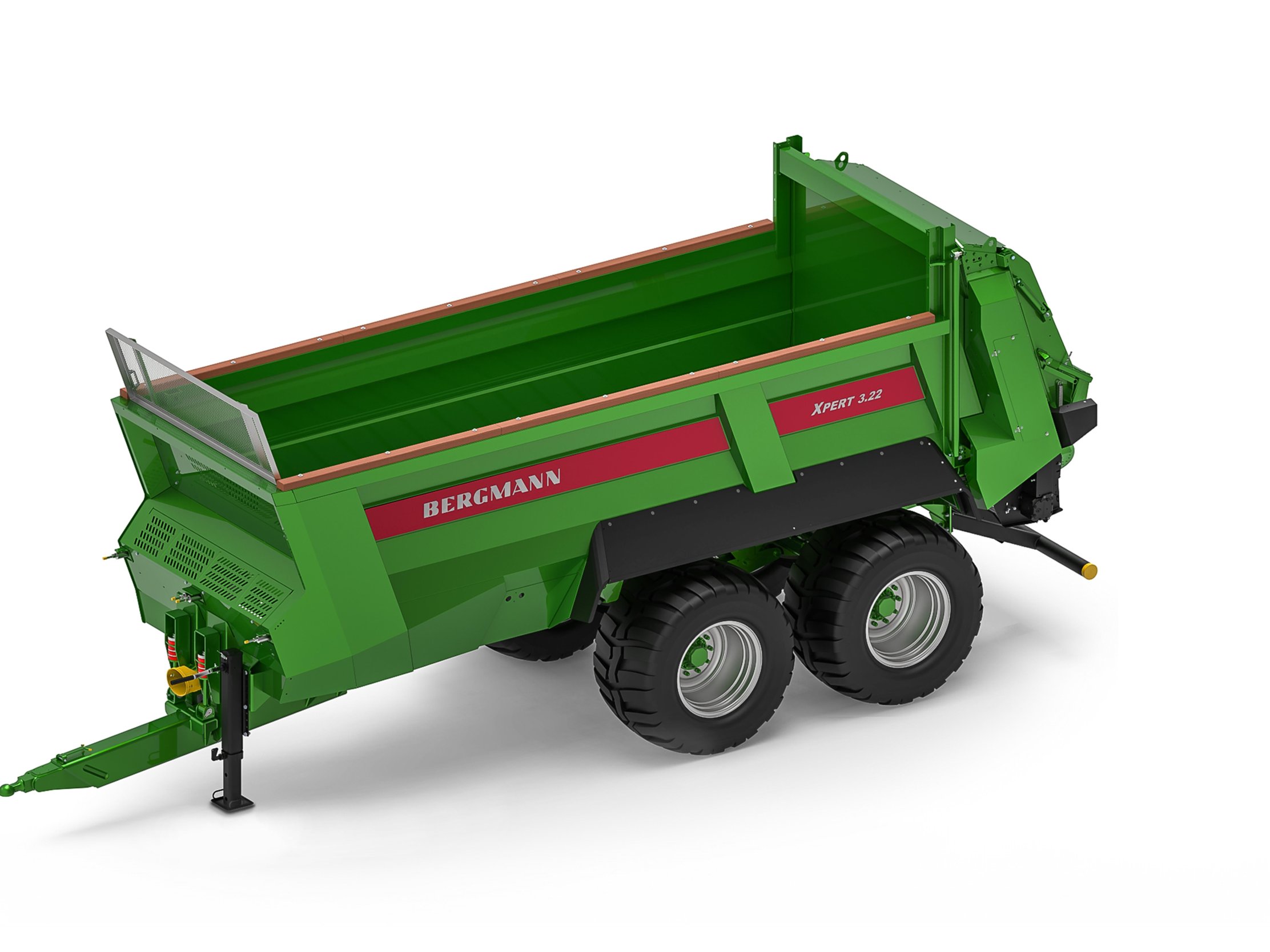

BERGMANN XPERT 3.22
Mechanical tandem chassis, 21 - 22 t gross weight, from 140 hp
The BERGMANN XPERT 3.22 is a twin-axle spreader with mechanical suspension and a gross weight of 21 to 22 t. It features a narrow drawbar, a self-supporting, conical all-steel bin with a load volume of 19.9 m³ and a low-maintenance drive with separate protection. The body is fully cathodic dip and powder-coated. Thanks to its design, it is exceptionally manoeuvrable, has a high payload and is easy to clean.
The standard features of the XPERT 3.22 include a milling unit with two horizontal milling beaters (passage height 1,550 mm) and the T-Spread standard disk spreader unit with two spreader disks (ø 1,000 mm and with four adjustable spreader blades each) for working widths up to 24 m, depending on the spread material. For optimum shredding, the milling beaters are fitted with double tines in a V-pattern. These are screw-fitted for easy replacement. The milling unit is driven via a cardan drive as standard. Optionally available are the reinforced standard disk spreader unit T-Spread with spreader blades and guide plates in Hardox quality, the wide spreading unit V-Spread with two spreader disks (ø 1,100 mm and with six adjustable spreader blades each) for working widths up to 36 m (depending on the spread material) and the hybrid spreader unit 2-Spread with two vertical beaters (ø 1,050 mm each) and spreader disks with three spreader blades each for exceptionally high throughput rates. All spreader units are ideally suited for optimum spreading of all materials (stable manure, compost, lime etc.).
The largest possible tyres are 800/45 R30.5. In addition to operation via ISOBUS, various versions of TIM (Tractor Implement Management, where the trailer controls the tractor) are possible. The large range of optional extras makes for an ideal adaptation to users’ requirements.
The standard features of the XPERT 3.22 include a milling unit with two horizontal milling beaters (passage height 1,550 mm) and the T-Spread standard disk spreader unit with two spreader disks (ø 1,000 mm and with four adjustable spreader blades each) for working widths up to 24 m, depending on the spread material. For optimum shredding, the milling beaters are fitted with double tines in a V-pattern. These are screw-fitted for easy replacement. The milling unit is driven via a cardan drive as standard. Optionally available are the reinforced standard disk spreader unit T-Spread with spreader blades and guide plates in Hardox quality, the wide spreading unit V-Spread with two spreader disks (ø 1,100 mm and with six adjustable spreader blades each) for working widths up to 36 m (depending on the spread material) and the hybrid spreader unit 2-Spread with two vertical beaters (ø 1,050 mm each) and spreader disks with three spreader blades each for exceptionally high throughput rates. All spreader units are ideally suited for optimum spreading of all materials (stable manure, compost, lime etc.).
The largest possible tyres are 800/45 R30.5. In addition to operation via ISOBUS, various versions of TIM (Tractor Implement Management, where the trailer controls the tractor) are possible. The large range of optional extras makes for an ideal adaptation to users’ requirements.
- Increase in performance
- Larger load volume at the same gross weight – for increased efficiency
- Higher technical payload allows maximised productivity
- Higher milling unit passage of 1,550 mm for higher throughput rates
- Separate protection of the milling unit drive makes for higher throughput than with simple protection
- T-Spread: Increased switch-off torques at the disks enable higher throughput
- V-Spread optional for larger working widths and fewer tram lines
- Practical cargo space length and load height for easy loading
- Narrow drawbar for outstanding manoeuvrability
- Easy towing thanks to tyre options up to 30.5”
- Optimisation of work quality
- Optimised material feed point onto the spreader disks for an even more uniform spreading pattern and optimum lateral distribution
- Low ground disturbance through optional larger tyres and fewer tram lines through greater spreading widths
- Improved wear- and corrosion resistance
- High-quality cathodic dip and powder surface coating for long-lasting protection
- Bin floor of highly wear-resistant steel
- Fully welded bin prevents gap corrosion
- Reduction of cleaning workload and avoidance of dirt deposits
- Narrow drawbar simplifies cleaning
- Self-supporting bin design without additional subframe
- Steeply angled, cathodic dip and powder coated mudguards with a smooth surface reduce material adherence
- Side wall contour prevents material deposits
- Narrow lighting in high position above spreader unit
- Round underride guard reduces soiling
- Simplification of maintenance and servicing
- Conveniently grouped lubrication points
- Low-maintenance cardan drives (no chain drives)
- Standardised, neatly routed hydraulic hoses
- Control block always located in the same, easily accessible place
- Cables neatly routed and easily accessible
- Reliable LED lights for outstanding safety
- Increased safety and convenience
- ISOBUS TIM allows control of the tractor by the trailer
- Electronic steering without drawbar angle sensor for easy coupling and superior manoeuvrability
- Optional removable storage box
- Clearly visible taillights in high-up position above disk spreader unit
- Inclined access ladder allows safe checking of the cargo space
- Higher tongue load for greater driving comfort and optimum towing force transmission
- Permanently bolted weighing system provides additional driving comfort
- EU type approval (CoC) in category R (transport vehicles)
- Road transport also possible in laden state
- No separate national approval required – facilitates approval and resale within the EU
- Clean, modern design
- Reduced cleaning effort through clever construction
- Minimised soiling
- Dynamic, innovative and progressive
- Coupling:
- Mechanical, spring-loaded narrow drawbar for low drawbar linking
- Rigid drawbar eye
- Jost jack stand with two speeds
- Chassis:
- Rectangular tube chassis frame
- Axle cover
- Bogie:
- Tandem chassis with parabolic suspension and swing compensation
- 2 braking axles, cross-section 130 x 130 mm
- Axle track width 2,100 mm
- Axle centre distance 1,600 to 1,750 mm
- 10-hole wheel connection
- Brake:
- Dual-circuit air brake system with ALB regulator, spring actuated
- Body:
- Self-supporting design without additional subframe
- Load volume 19.9 m³
- Bridge dimensions inside 6,770 x 2,050 x 1,270 mm
- Conical all-steel bin
- Highly wear-resistant steel floor (3 mm thickness), welded to side walls
- Steel side walls with stable scraper guards of recycled plastic
- Large cargo space viewing window
- Front rockfall screen
- Spreader unit:
- 2-beater milling unit
- 2 horizontal milling beaters with screwed double tines in a V-pattern and made of high-strength, low-wear material
- Cam clutch to protect the milling unit
- Dosing wall
- Passage height 1,550 mm
- Hydraulically foldable spreader hood with foreign object guard on lower tailgate and plastic inner lining
- 2 spreader disks (1,000 mm diameter each, thickness 8 mm)
- 4 adjustable spreader blades per disk, thickness 8 mm
- Reinforced main gearbox in the disk spreader unit
- Each disk gearbox is protected with a separate cam clutch
- Diameter of disk gearbox shaft stub 50 mm
- Wear plates (screwable)
- Scraper floor:
- Hydraulic drive (reversible) on both sides via 2 spur gearboxes and oil motors
- Automatic chain tensioner at the front
- 4 round-link steel chains (14 x 50 mm each, 25 t breaking load per chain)
- Diameter of feed shaft 60 mm
- Screwed flights made of 60 x 30 x 6 mm U-profile, fitted closed at the top
- Drive:
- Walterscheid wide-angle PTO shaft
- One-piece drive shaft
- Overrunning clutch in the drivetrain
- Separate protection for milling unit and disk spreader unit
- PTO speed 1,000 rpm
- Lighting:
- LED lights
- Conforming to EU directives
- Protective equipment according to German employers’ liability insurance association
- EU type approval (CoC)
| BERGMANN XPERT 3.22 with T-Spread | BERGMANN XPERT 3.22 with V-Spread | BERGMANN XPERT 3.22 with 2-Spread | |
|---|---|---|---|
| Dimensions | |||
| Bridge length | 6.770 mm | ||
| Bridge width | 2.050 mm | ||
| Bridge height | 1.270 mm | ||
| Length (T-Spread, V-Spread) | 9.665 mm | 9.665 mm | - |
| Length (2-Spread) | - | - | 9.650 mm |
| Width without tyres | 2.550 mm | ||
| Width with tyres | 2.927 mm | ||
| Height (2-beater milling unit, T-Spread, V-Spread) | 3.568 mm | 3.568 mm | - |
| Height (2-Spread) | - | - | 3.648 mm |
| Weight | |||
| Gross weight | 21.000 - 22.000 kg | ||
| Coupling | |||
| Low drawbar | Series | ||
| Body/cargo space | |||
| Transfer height (without extension), tyres min. | 2.898 mm | ||
| Transfer height (without extension), tyres max. | 3.036 mm | ||
| Load volume without extensions | 19,9 m³ | ||
| Load volume with 300 mm extensions | 24,1 m³ | ||
| Load volume with 550 mm extensions | 27,3 m³ | ||
| Milling unit/spreader unit | |||
| Milling unit passage (2-beater milling unit) | 1.550 mm | 1.550 mm | - |
| Spreader unit passage (2-Spread) | - | - | 1.700 mm |
| Spreader disk diameter (T-Spread) | 1.000 mm | - | - |
| Number of spreader blades (T-Spread) | 4 | - | - |
| Spreader disk diameter (V-Spread) | - | 1.100 mm | - |
| Number of spreader blades (V-Spread) | - | 6 | - |
| Chassis | |||
| Chassis | Tandem, mechanical | ||
| Tyres | |||
| Min. reference wheel | 710/50 R26.5 BKT | ||
| Max. reference wheel | 800/45 R30.5 Vredestein | ||
| Tractor requirements | |||
| Power demand (T-Spread, V-Spread) | 110 - 257/150 - 350 kW/hp | 110 - 257/150 - 350 kW/hp | - |
| Power demand (2-Spread) | - | - | 103 - 221/140 - 300 kW/hp |
* We reserve the right to make changes to dimensions, weights and technical data. Dimensions and weights do not necessarily correspond to series versions and are not binding.
